MODEL

HVG-100-15

HVG-100-20

HVG-100-24

HVG-100-30

HVG-100-36

HVG-100-42

HVG-100-48

HVG-100-54

OUTPUT

DC VOLTAGE

15V

20V

24V

30V

36V

42V

48V

54V

CONSTANT CURRENT REGION Note.4

7.5~15V

10~20V

12~24V

15~30V

18~36V

21~42V

24~48V

27~54V

RATED CURRENT

5A

4.8A

4A

3.2A

2.65A

2.28A

2A

1.77A

RATED POWER

75W

96W

96W

96W

95.4W

95.76W

96W

95.58

RIPPLE & NOISE (max.)  Note.2

150mVp-p

150mVp-p

150mVp-p

200mVp-p

200mVp-p

200mVp-p

200mVp-p

200mVp-p

VOLTAGE ADJ.RANGE  Note.6

13.5~17V

17~22V

22~27V

27~33V

33~40V

38~46V

43~53V

49~58V

CURRENT ADJ.RANGE

Can be adjusted by internal potential meter or through output cable

2.5~5A

2.4~4.8A

2~4A

1.6~3.2A

1.3~2.65A

1.1~2.28A

1~2A

0.85~1.77A

VOLTAGE TOLERANCE NOTE.3

2.0%

1.0%

1.0%

1.0%

1.0%

1.0%

1.0%

1.0%

LINE REGULATION

0.5%

0.5%

0.5%

0.5%

0.5%

0.5%

0.5%

0.5%

LOAD REGULATION

1.5%

0.5%

0.5%

0.5%

0.5%

0.5%

0.5%

0.5%

SETUP, RISE TIME

2500ms, 50ms at full load     440VAC / 347VAC ;  B  type 2500ms, 200ms at 95% load     440VAC / 347VAC

HOLD UP TIME (Typ.)

12ms at full load     440VAC / 347VAC

INPUT

VOLTAGE RANGE

180 ~ 480VAC          254VDC ~ 679VDC

FREQUENCY RANGE

47 ~ 63Hz

POWER FACTOR

PF >=0.95/440VAC          PF>= 0.98/347VAC at full load and rated output voltage PF>= 0.9 at 60 ~ 100%  load

EFFICIENCY (Typ.)

90%

90%

91%

91%

91%

91%

91%

91%

AC CURRENT (Typ.)

0.32A / 347VAC          0.25A / 440VAC

INRUSH CURRENT (Typ.)

COLD START 75A / 440VAC

LEAKAGE CURRENT

<0.75mA / 440VAC

PROTECTION

OVERCURRENT NOTE.4

95 ~ 108%

Protection type : Constant current limiting, recovers automatically after fault condition is removed

OVER VOLTAGE

18~21V

23~27V

28~34V

34~38V

41~46V

47~53V

54~60V

59~65V

Protection type : Shut down o/p voltage, re-power on to recover

OVER TEMPERATURE

100 10  (RTH2)

Protection type : Shut down o/p voltage, re-power on to recover

ENVIRO

NMENT

WORKING TEMP.

-40 ~ +60 @ full load ; +70 @ 60% load (Refer to derating curve)

WORKING HUMIDITY

20 ~ 95% RH non-condensing

STORAGE TEMP., HUMIDITY

-40 ~ +80 , 10 ~ 95% RH

TEMP. COEFFICIENT

0.03%/ (0 ~ 50 )

VIBRATION

10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY &EMC

(Note 4)

SAFETY STANDARDS

UL8750, IP65 or IP67 approved ; Design refer to UL60950-1, TUV EN60950-1, EN61347-1, EN61347-2-13

WITHSTAND VOLTAGE

I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC

ISOLATION RESISTANCE

I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25 / 70% RH

HARMONIC CURRENT

Compliance to EN61000-3-2,CLASS C( 60% load),EN61000-3-3

EMS

IMMUNITY

Compliance to EN61000-4-2,3,4,5,6,8,11; ENV50204, EN61547, EN55024, heavy industry level (surge 4KV), criteria A

OTHERS

MTBF

Khrs min.      MIL-HDBK-217F (25 )

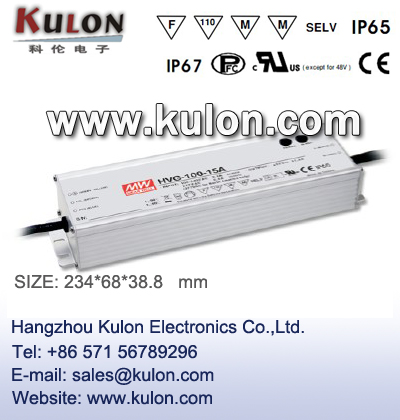

DIMENSION

234*68*38.8mm (L*W*H)

PACKING

Kg

NOTE

1. All parameters NOT specially mentioned are measured at 347VAC input, rated load and 25 of ambient temperature.

2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.

3. Tolerance : includes set up tolerance, line regulation and load regulation.

4. Constant current operation region is within 50% ~100% rated output voltage. This is the suitable operation region for LED related applications, but please

reconfirm special electrical requirements for some specific system design.

5. Derating may be needed under low input voltages. Please check the static characteristics for more details.

6. Type A only.

7. Safety and EMC design refer to EN60598-1, CNS15233, GB7000.1, FCC part18.

8. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the

complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again.
